Inductor Design Guide: From Structure to EMC Layout

I. Inductor Structures

The basic structure of an inductor is simple: winding an enameled wire around a magnetic core forms an inductor. However, in practical applications, there are multiple choices:

Core materials: Ferrite, powdered iron, etc.
Core shapes: Toroidal, E-shaped, and other specialized geometries
Winding types: Single-strand wire, multi-strand twisted wire (rope-type), or Litz wire

Engineers must select the most suitable inductor type based on the specific application scenario.

II. Inductor Characteristics, Design, and Trade-offs

Material Selection:

Nanocrystalline materials are often used in common-mode chokes (CMC) due to their broadband frequency characteristics.
However, in motor drives or high-power switch-mode power supplies (SMPS), electromagnetic interference (EMI) typically starts in the kHz range, making manganese-zinc (MnZn) cores more suitable.

Inductance Calculation:
Theoretical formula:

Where:

n: Number of turns
A: Cross-sectional area of the core
k: Coil geometric coefficient
\mu_0: Permeability of free space

Design Trade-offs:
Increasing the number of turns enhances inductance (proportional to the square of turns), but inter-turn capacitance also rises, leading to:

A downward shift in resonant frequency
Dominance of capacitive effects (especially above 20 MHz)

This is a key reason why inductors may perform poorly in certain designs.

III. Case Study

A DC-DC converter employed a two-stage CMC filter (targeting 20–30 MHz noise suppression). Despite the CMC datasheet showing good attenuation in this range, actual testing revealed:

After removing the CMC: Noise in the 20–30 MHz range decreased by ≥6 dB (capacitive effects dominated).
Low-frequency range (150 kHz–1 MHz): Noise worsened (due to leakage inductance).

Solution: Switching to a ferrite core and reducing the number of turns.

Illustration:

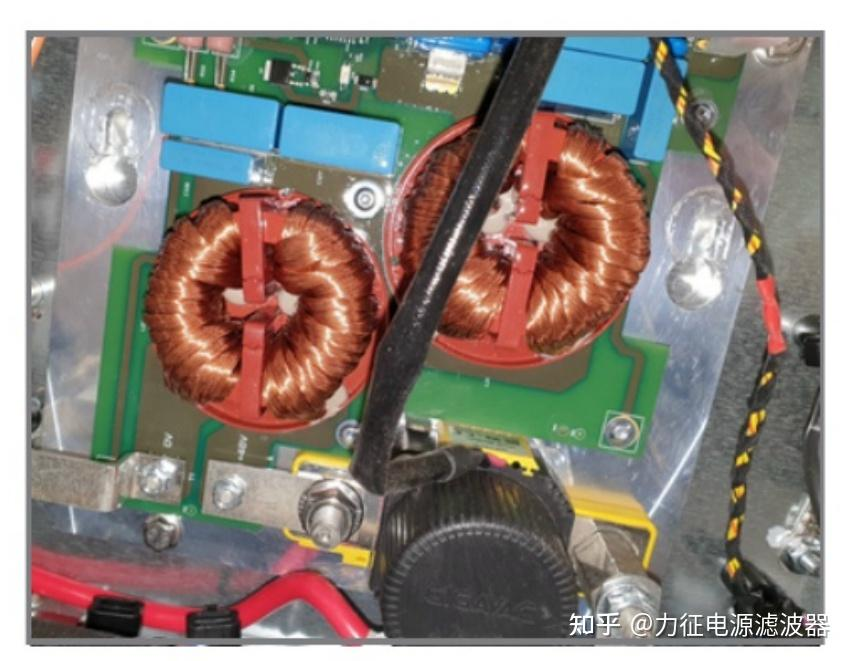

The figure shows two common-mode chokes (REO model CHII31) in the DC-DC converter's two-stage filter.

Structure: Nanocrystalline core + rope-type winding

Failure Analysis:

High-frequency failure: Winding capacitance caused inefficiency above 20 MHz.
Low-frequency dependency: Leakage inductance still provided suppression at 150 kHz–1 MHz.

IV. Inductor Layout and Shielding Guidelines

4.1 Test Data:

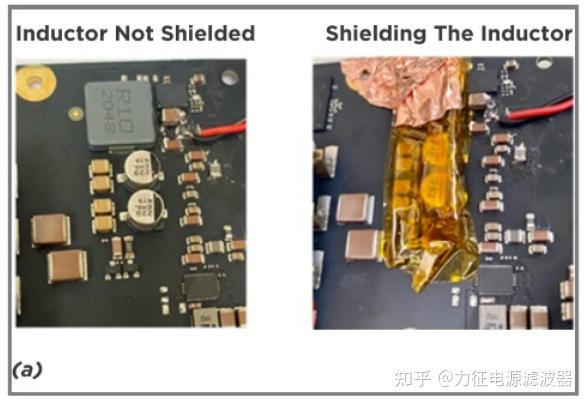

Shielding effect: Using copper tape to shield the inductor reduced conducted emission noise by 10 dB.
Curve comparison: Purple (bare PCB) vs. green (shielded inductor).

4.2 Layout Rules:

Primary principle: Minimize magnetic flux coupling.
Magnetic field strength decays as 1/r (where r is distance).
Common coupling mechanisms (see Fig. 11):
1. Between conductors
2. Between inductor and conductors
3. Cross-coupling between inductors/transformers

PCB Design:

Prefer shielded inductors.
Place filter inductors on the PCB's "quiet side."
In large systems (e.g., industrial motor drives): Keep inductors far from other cables.
